CV1130Sensibly equivalent¶ to:
|
|
|

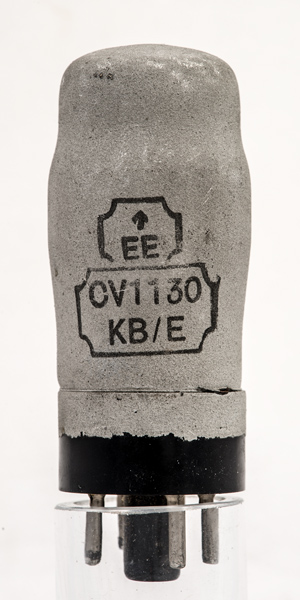

The CV1130 is a directly heated battery triode based on the Mazda HL23. Previously the CV1130 was known as the VR130.The KB/E identifies this valve as being made to specification K1001 or K1006, the B denotes qualification by a UK authority and the E identifies the maker as Thorn-AEI, Brimsdown.

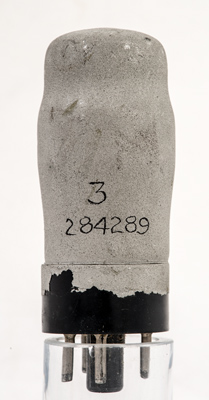

Serial number or ?The classic envelope is 33 mm in diameter and, excluding the MO base pins, is 71 mm tall.Reference: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |  f | nc | a | nc | g1 | m | nc | f |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vg | mAa | ra | gm |
| 2.0 | 0.05 | 150 | -2.4 | 1.5 | 27,000 | 1.2 |
|
Updated March 05, 2025.
|
|
