CV35

Sensibly equivalent to:
NR89
See also:
Development of the CV35 - Radar Technique - Valve Developments - CV237 short entry - CV314 short entry

Extras ▼



The CV35 is a tunable reflex klystron that has an International Octal base and was designed to operate as an oscillator at a wavelength of 10 cm (3 GHz) and replaced the NR89.
A range of Types existed to this design, varying only in frequency. These were the CV35, CV36 and CV69. These all operated with voltages above 1 kV and were a problem for airborne use. The replacement design was the CV116, CV238 and CV272.

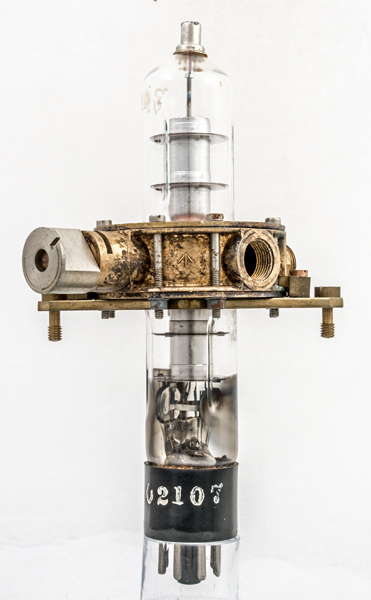

The valve is made with copper discs extending outside the glass with copper/glass seals. The resonant cavity is then bolted onto the discs. The body looks to be brass with the tuning adjustment as a bright cylinder on the right.

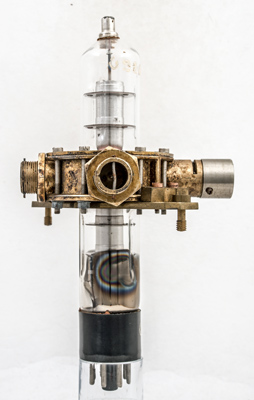

One port is open and the glass can be seen within.

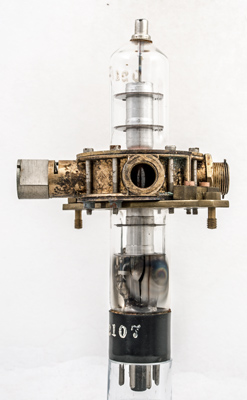

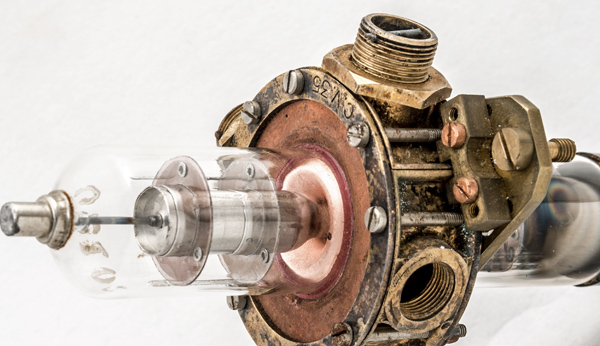

The CV35 is stamped into the external cavity. The copper discs are clamped to the cavity body with the annular ring.
The wide glass tube envelope is 29 mm in diameter and, excluding the IO base pins, is 157 mm tall.
Reference: Data-sheet. Type CV35 was first introduced in 1941.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
g1
h
-
-
-
-
h
k
r



Absolute Maximum Operating Conditions
General Notes
Vh
Ah
4.0
1.45
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 12, 2021.
