D63

Sensibly equivalent to:
6H6GT 6H6G ARDD3 CV554 CV1301 CV1929 EB34

Extras ▼



The D63 is a double signal diode with separate cathodes. The old service code was ARDD3 and the later CV code was CV1301.

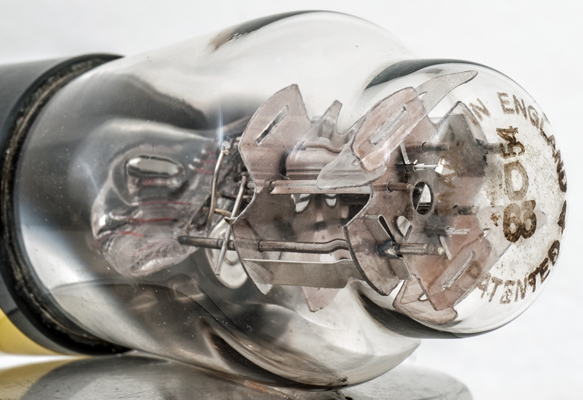

The identification is etched into the dome of the envelope.

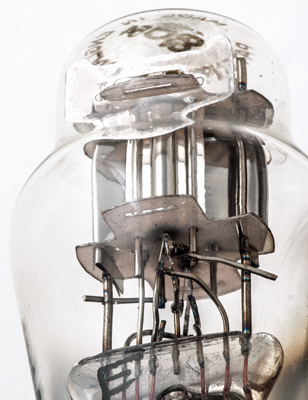

The pinch and lower components. The bright anode is secured to two support rods that are fixed into the mica sheets top and bottom.
The classic envelope is 35 mm in diameter, and excluding the IO base pins is 76 mm tall.
References: Datasheet, 1040 & 1043. Type D63 was first introduced in 1937.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
-
h
k



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
100
2.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 17, 2019.
shape:classic construction:pinch type:double.diode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a(2) pin:4.k(2) pin:5.a(1) pin:6.- pin:7.h pin:8.k
