5AR4

Sensibly equivalent to:
CV1377 GZ34

Extras ▼

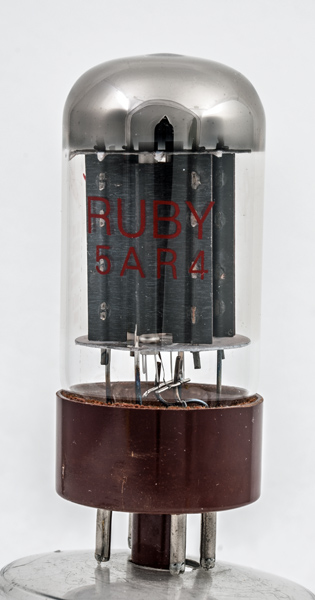

The 5AR4 is a compact high current full wave rectifier for high current small equipment use. This exhibit is branded Ruby and Fender and belongs in Rob's Fender Deluxe Reverb Amplifier.

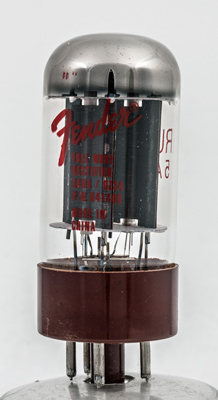

The Fender logo and Made in China. The other words are Full Wave Rectifier and 5AR4 / GZ34.

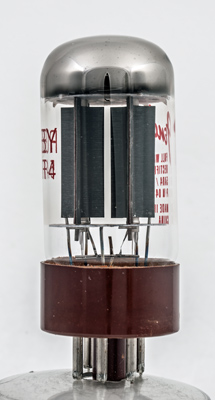

The X shaped anodes for good head radiating capacity.
The wide glass tube envelope is 32 mm in diameter and, excluding the IO base pins, is 70 mm tall.
References: Datasheet, 3002 & 1040. Type 5AR4 was first introduced in 1952.



Pin Connections
IO
1
2
3
4
5
6
7
8
M
h
nc
a(2)
nc
a(1)
nc
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
1.9
550
160
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated February 17, 2018.
