STV280/80

Sensibly equivalent to:
CV1069 G280/2B NS1 VS69
See also:
Marconi Stabilovolt Advert - Marconi Stabilovolt Advert - Marconi Stabilovolt Advert - Stabilised Power Unit

Extras ▼

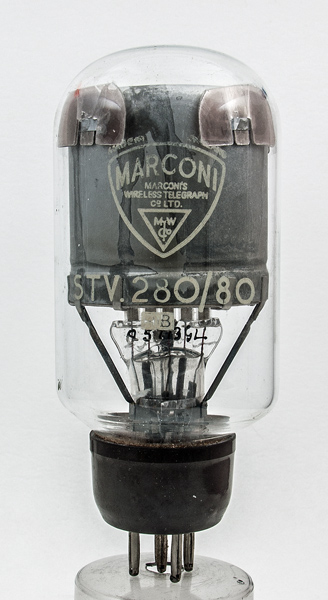

The STV280/80 is the larger of the two Stabilovolt voltage stabilisers made. The smaller STV280/40 was most commonly found with the service code VS68 and had a maximum current of 40 mA whereas this stabiliser is rated up to 80 mA.
It has four anodes, and thus four outputs with gaps of 70 volts each. These output voltages are 70, 140, 210 & 280.
The striking voltage is above 420 Volts and the tube current is 5 - 35 mA. The tube voltage regulation is about a couple of Volts for each 70 Volt step.

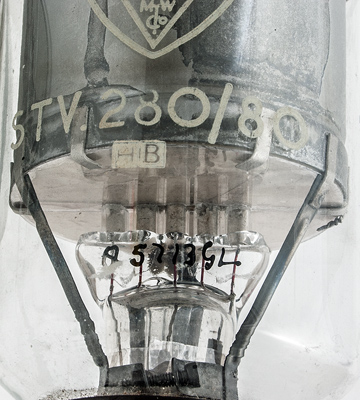

The connections below the mica are sheathed in glass tubes.
The wide glass tube envelope is 62 mm in diameter and, excluding the B5 base pins, is 130 mm tall.
References: Datasheet & R J Sutherland. Type STV280/80 was first introduced in 1936.



Pin Connections
B5
1
2
3
4
5
a(4)
k
a(2)
a(3)
a(1)



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
420
55
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 12, 2014.
