50L6GTSensibly equivalent¶ to:
|
|
|
The 50L6GT is an audio output beam tetrode and is designed for series heater chain use with a heater current of 150 mA.The design has been developed from the 6V6GT and designed for the same application, audio output within broadcast radio receivers.The 50B5 is a B7G version of this design with lower output power.![](../pics/abo0128a.jpg)

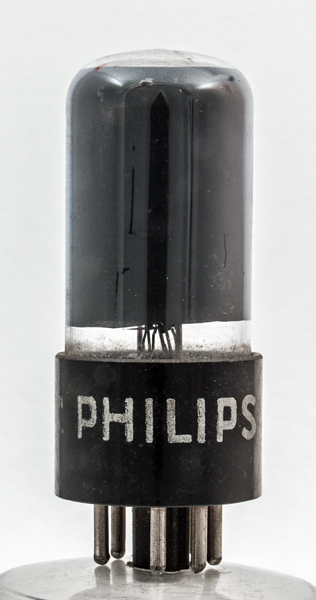

Made in USA is visible but the internal structure is not.The wide glass tube envelope is 28 mm in diameter, and excluding the IO base pins is 68 mm tall.References: Data-sheet & 1040. Type 50L6GT was first introduced in 1941. See also 1941 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ![](../static/key.gif) m | h | a | g2 | g1 | nc | h | k |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | rk | rl | Pout | D | ![](../static/pdflogo.gif)
| 50.0 | 0.15 | 200 | 110 | -8.0 | 50.0 | 2.0 | 30,000 | 9.5 | 185 | 3,000 | 4.3W | 10% |
|
