50L6GT

Sensibly equivalent to:
CV571 KT71

Extras ▼



The 50L6GT is an audio output beam tetrode and is designed for series heater chain use with a heater current of 150 mA.
The design has been developed from the 6V6GT and designed for the same application, audio output within broadcast radio receivers.
The 50B5 is a B7G version of this design with lower output power.

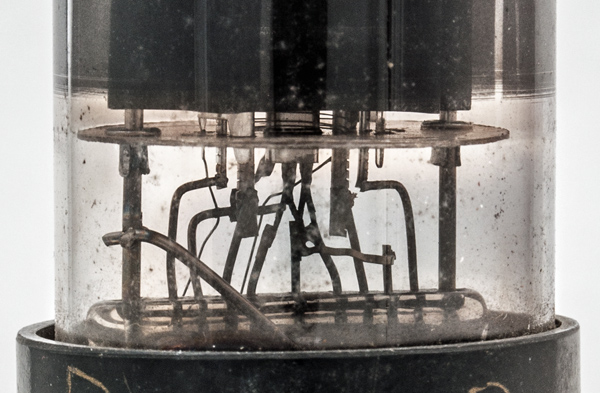

The connections below the lower mica and above can be seen the flat faced cathode with rounded ends and the grid wires.

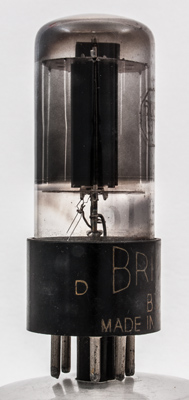

End on the anode can be seen to be rectangular.

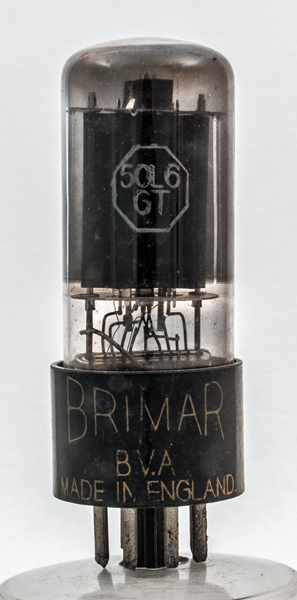

The wide glass tube envelope is 28 mm in diameter, and excluding the IO base pins is 75 mm tall.
References: Datasheet & 1040. Type 50L6GT was first introduced in 1941.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g1
-
h
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
rk
rl
Pout
D
50.0
0.15
200
110
-8.0
50.0
2.0
30,000
9.5
185
3,000
4.3W
10%
Thanks to Frank Philipse for supplying the above PDF datasheet.
