VT60

Sensibly equivalent to:
8018 CV1060

Extras ▼



The VT60, commercial 8018, from RCA looks identical to the classic 807 but while the data for the 807 is easy to find the 8018 is obscure. The corresponding CV reference gives the maximum operating frequency as 120 MHz - well above the 60 MHz rating for the 807 and that me the only difference.
After 1945 it is believed that many 8018's were re-labelled as 807.

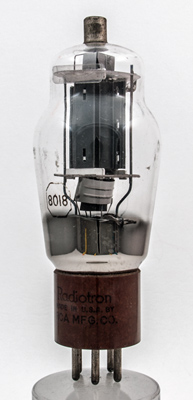

The Type designation 8018 and the RCA Radiotron branding.

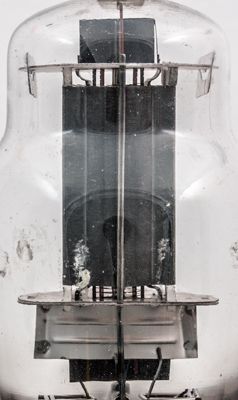

The anode with the screen grid visible at the base. The characteristic screening shield is in place below the lower mica.

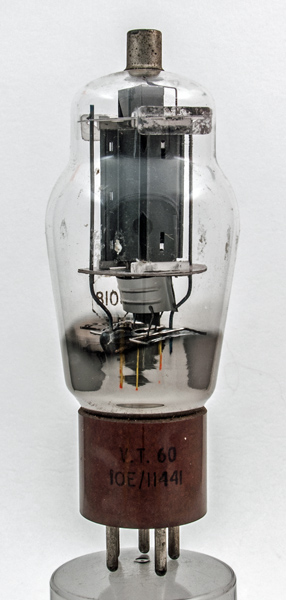

The classic envelope is 51 mm in diameter, and excluding the UX5 base pins is 128 mm tall.
Reference: Data-sheet.



Pin Connections
UX5
1
2
3
4
5
tc
h
g2
g1
k
h
a



Absolute Maximum Operating Conditions
Beam Tetrode
Vh
Ah
Va
Vs
gm
6.3
0.9
600
300
7.1
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 14, 2023.
