CV2638

Sensibly equivalent to:
393A

Extras ▼

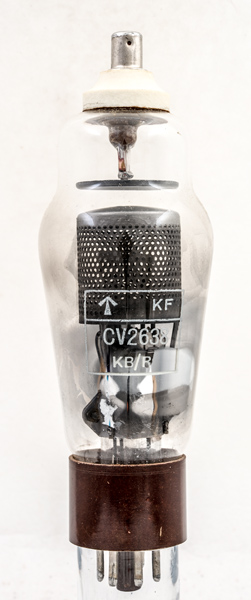

The CV2638 is a mercury-argon thyratron with a peak anode current of 6 Amps at 1,250 volts and thus a peak pulse capability of 7.5 kW. This pulse can be repeated at a maximum of 150 times a second. Ideal for a small radar transmitter.

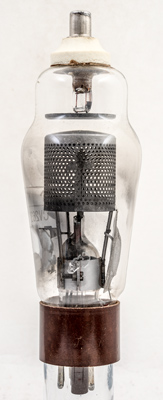

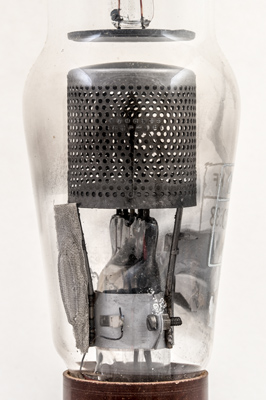

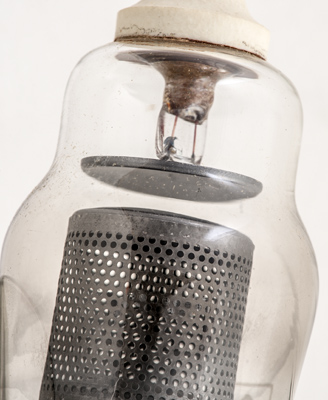

The screening cylinder makes observation of the inner details difficult but a small diameter flat cathode can be seen with the heater below.
The classic envelope is 52 mm in diameter, and excluding the IO base pins is 149 mm tall.
References: Datasheet.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
f
f
-
g1
-
-
f
f
a



Absolute Maximum Operating Conditions
Thyratron
Vh
Ah
Va
mAa
2.5
7.0
1,250
1,500
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 15, 2015.
shape:classic construction:pinch type:thyratron age:1940.1950 base:io heater:2.5v pins:8 pin:1.f pin:2.f pin:3.- pin:4.g1 pin:5.- pin:6.- pin:7.f pin:8.f pin:tc.a
