5750

Sensibly equivalent to:
CV4012

Extras ▼

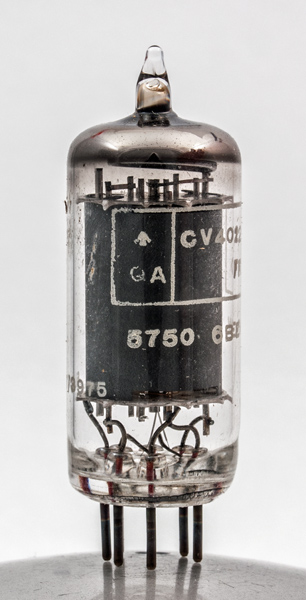

The 5750 is a direct equivalent of the 6BE6W special quality version of the 6BE6 heptode mixer.
The thin glass tube envelope is 18 mm in diameter, and excluding the base pins is 47 mm tall.
Reference: Data-sheet. Type 5750 was first introduced in 1951. See also 1951 adverts.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2,g4
g3



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Vosc
6.3
0.3
250
100
-1.5
3.0
7.1
1M
0.475
10
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 26, 2014.
