CV4012

Sensibly equivalent to:
5750 6BE6W CV453

Extras ▼

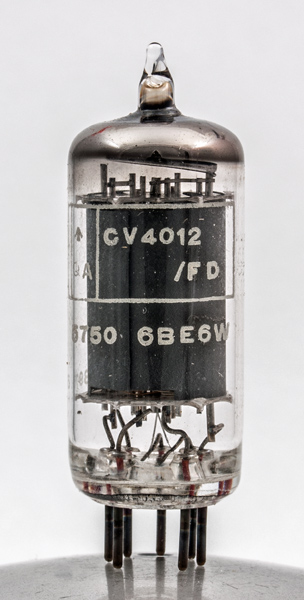

The CV4012 is a special quality version of the CV453 (commercial 6BE6) heptode mixer. The CV4012 is a direct equivalent of the 5750 and 6BE6W.
The thin glass tube envelope is 18 mm in diameter, and excluding the base pins is 47 mm tall.
Reference: Datasheet. Type CV4012 was first introduced in 1957.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
a
g2,g4
g3



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
Vosc
6.3
0.3
250
100
-1.5
3.0
7.1
1M
0.475
10
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 26, 2014.
