GZ30

Sensibly equivalent to:
5Z4GT 5Z4G R52
See also:
Mullard 5-10 Amplifier Advert - Mullard 5-10 Amplifier Advert - Mullard 5-10 Amplifier Advert

Extras ▼

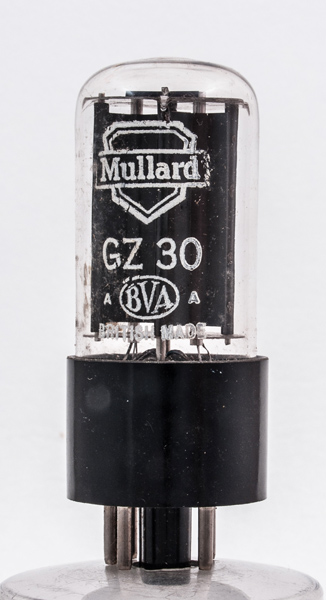

This exhibit is a British made GZ30 full wave rectifier. The GZ30 was designed for larger domestic equipment and audio amplifiers. The maximum reservoir capacitor was 50 µF and the minimum effective series resistance had to be 380 Ohms. The maximum peak inverse voltage was 1.4 kV.

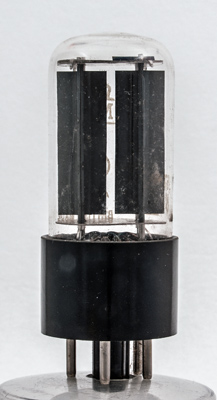

The two anode sections mounted side by side.

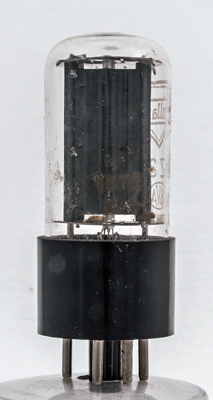

Face view of one anode.
The wide glass envelope is 28 mm in diameter and, excluding the IO base pins, is 69 mm tall.
References: Data-sheet, 1040 & Alf Parker. Type GZ30 was first introduced in 1940.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
-
a(2)
-
a(1)
-
h,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.0
350
125
PDF scanned from an original document held by the museum
Updated September 06, 2019.
shape:wide.glass.tube construction:pinch type:rectifier.fw age:1950.1960 base:io heater:5.0v pins:8 pin:1.m pin:2.h pin:3.- pin:4.a pin:5.- pin:6.a pin:7.- pin:8.h.k
