VR91Sensibly equivalent¶ to:See also:
|
|
|

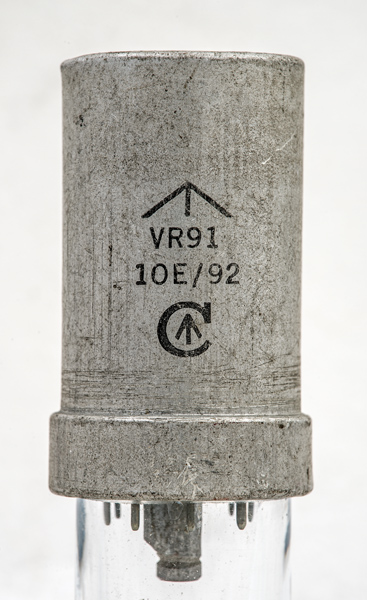

The WWII EF50 in a plain aluminium screening can and carrying the UK Air Ministry branding. The VR91 is Valve Receiving number 91.This amplifier pentode was a general workhorse. It was extensively used in radio and radar during WWII.The pins are equi-spaced around the circumference of the pin circle.The lettering on this example does not have the Air Ministry initials and crown of our other Rogers VR91.![](../pics/abw0021a.jpg)

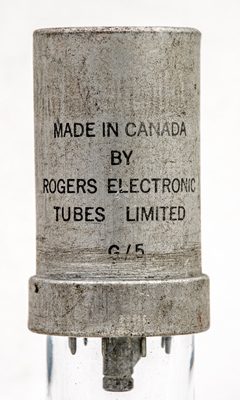

The Rogers Company information and Made in Canada.The wide glass tube envelope is 34 mm in diameter and, excluding the B9G base pins, is 60 mm tall.References: 1040. Type VR91 was first introduced in 1938. See also 1938 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | ![](../static/key.gif) h | g2 | a | g3 | s | k | g1 | s | h |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.3 | 250 | 250 | -2 | 10 | 3 | 1.0M | 6.5 |
|
Updated February 17, 2024.
|
|
