HD14

Sensibly equivalent to:
1H5GT CV1818 DAC32

Extras ▼



The HD14 is a battery diode triode.

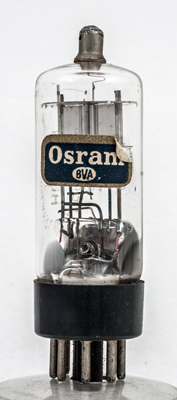

The Osram paper label.

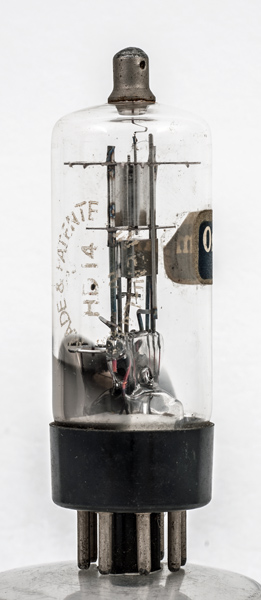

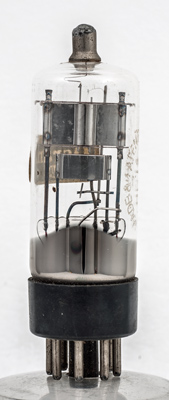

The triode is at the top and below the middle mica is the screening box containing the diode anode. The anode forms a cylinder around the single strand filament and is welded to the support that can be seen on the right of the image.
The wide glass tube envelope is 28 mm in diameter and, excluding the B7 base pins, is 81 mm tall.
References: 1040 & 1043. Type HD14 was first introduced in 1940.



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
1.4
0.05
90
0
0.14
0.24M
0.27
