9002

Sensibly equivalent to:
CV664
See also:
Acorn Antiques

Extras ▼

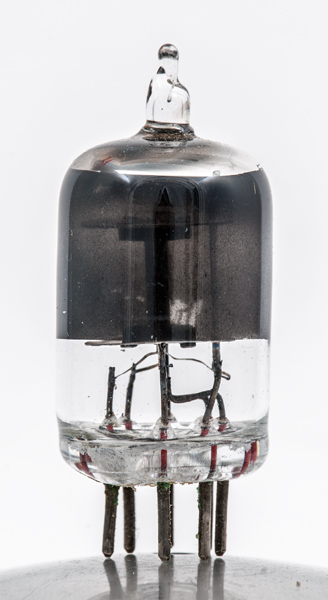

The 9002 is a UHF receiving triode for use as a Class A amplifier. The electrode assembly is very small, of the same scale as an acorn valve and very likely the electrodes of a 955 acorn valve in a B7G envelope.
B7G valves were make in the USA in the early 1940's but not made in the UK until 1947 or so.
The etched lettering is very difficult to see but is present as 9002 within an outer octagon - possibly an RCA valve.
The anode consists of two side plates connected by a narrow strip. Here the cathode and grid can be seen close to the centre with the anode plates out on either side.
The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 37 mm tall.
Reference: Datasheet. Type 9002 was first introduced in 1943.



Pin Connections
B7G
1
2
3
4
5
6
7
a
k
h
h
a
g1
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.15
250
-7
6.3
11.4k
2.2
25
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated January 28, 2017.
