6V9

Sensibly equivalent to:
ECH200

Extras ▼



The 6V9 is a television triode heptode. The triode was designed as a pulse amplifier and the heptode section was designed for service as a noise gated sync. separator in colour television receivers. The 6V9/ECH200 replaced the ECH84.
The PCH200 (attached data-sheet) differs only in heater characteristics.

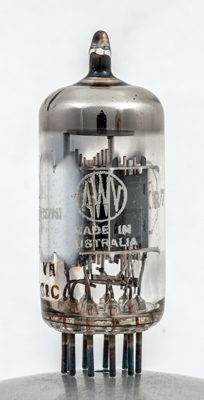

The AWV logo and Made in Australia. The triode is on the right and to the left are the many grid supports of the heptode.

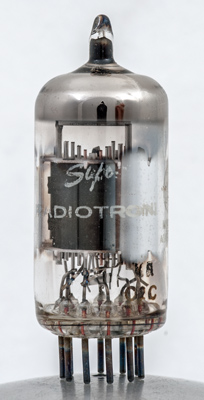

Super Radiotron. The heptode control grid is wound on copper supports.

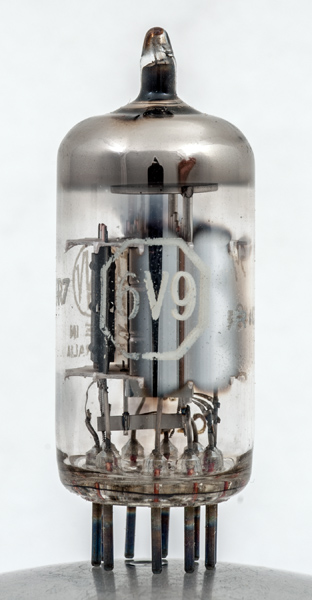

The thin glass tube envelope is 20 mm in diameter, and excluding the B10B base pins is 48 mm tall.
References: Data-sheet & 3002. Type 6V9 was first introduced in 1964.



Pin Connections
B10B
1
2
3
4
5
6
7
8
9
10
k,g5,s
g3
g1
g2,g4
h
h
a
g1(t)
k(t)
a(t)



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
6.3
0.435
14.0
14
-1.8
0.02
-



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
μ
200
-
9.0
-
8.8
50
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 15, 2020.
shape:thin.glass.tube construction:all.glass type:triode.heptode age:1960.1975 base:b10b heater:6.3v pins:10 pin:1.k.g5.s pin:2.g3 pin:3.g1 pin:4.g2.g4 pin:5.h pin:6.h pin:7.a pin:8.g1(t) pin:9.k(t) pin:10.a(t)
