6BX7GT


See also:
Experimental 12AX7 - 12AU7 Audio Amplifier - A 600 mW audio Amplifier

Extras ▼

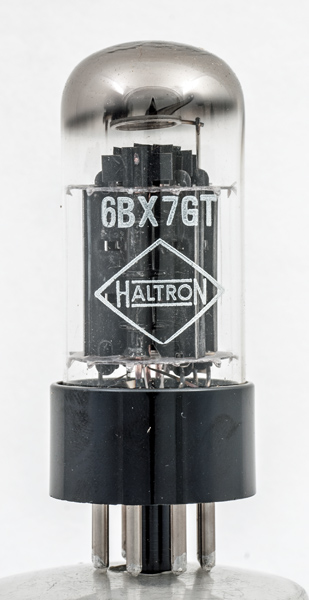

The 6BX7GT double triode was designed for use in 525 line television receivers as frame oscillator and amplifier. Consequently it is built to withstand high peak voltages and also a high cathode current.
Haltron were resellers not the original maker.
Although not imagined at the time of original manufacture, the 6BX7GT has been used as an audio amplifier.

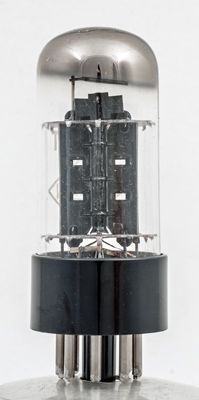

The twin triode sections with substantial anodes and copper supports for the grids.

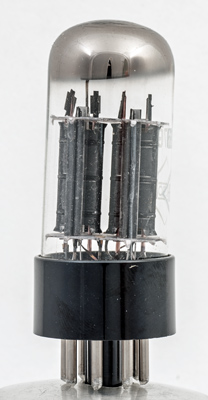

Side view of the anode - the flange is located in the centre of the working face where maximum heat is generated.

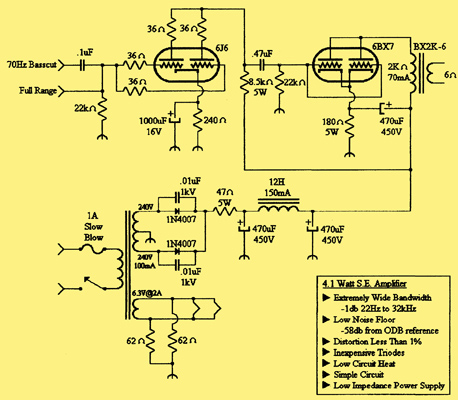

Circuit of a 4 Watt SE audio amplifier. Image courtesy Electra Print Audio.
The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 70 mm tall.
Reference: Data-sheet. Type 6BX7GT was first introduced in 1952.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(2)
a(2)
k(2)
g1(1)
a(1)
k(1)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
gm
μ
6.3
1.5
500
-
7.6
10
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 18, 2020.
shape:wide.glass.tube construction:glass.foot type:double.triode age:1950.1960 base:io heater:6.3v pins:8 pin:1.g1 pin:2.a pin:3.k pin:4.g1 pin:5.a pin:6.k pin:7.h pin:8.h
