6J4

Sensibly equivalent to:
6S2P A2209 CV1763

Extras ▼



The 6J4 was the prototype for the CV1763. It is a miniature grounded grid triode with a 2.5 Watt anode dissipation for operation into the UHF at 550 MHz.

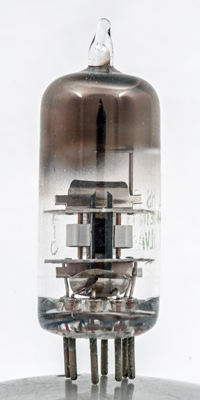

The anode is a pair of flat based U sections that are joined by bright straps. The grid is a close pitch but not a frame grid.

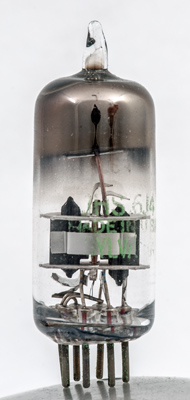

The Sylvania name in green paint.

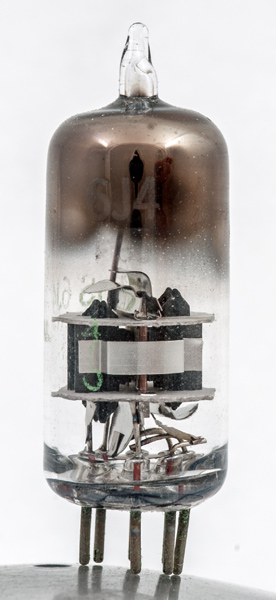

The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 47 mm tall.
Reference: Data-sheet. Type 6J4 was first introduced in 1950.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
k
h
h
g1
g1
a



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.4
165
-1.35
13.5
3,700
12.0
55
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 26, 2020.
