6FL2

Sensibly equivalent to:
ECF812

Extras ▼



The 6FL2 is a television valve in a miniature envelope, the 30FL2 is identical except for the heater, which is 300 mA for series heater chains.
The triode, low power beam tetrode was designed as line time base and sync separator. The 30FL2 was used in the time base circuitry of the once very common Thorn 1500 mono television chassis. Models using this chassis included sets sold under the names of Ferguson, Ultra, Radio Rentals et al. In the Thorn 1500 chassis the 30FL2 triode section was used in blocking oscillator configuration as the line oscillator and the beam tetrode as the sync pulse separator. It is believed that the 30FL2 is an enhanced version of the 30FL1. Thanks to Simon Pearson for additional data on the 30FL1 and 30FL2.
The 6FL2 used on equipment with mains transformers would feature in professional monitors.

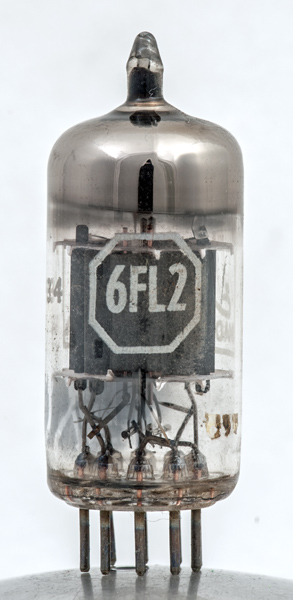

This exhibit is branded Miniwatt and was made by Philips Australia.

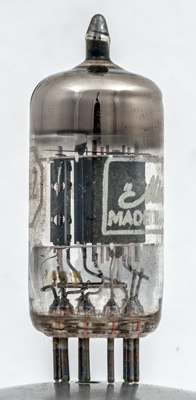

The triode on the left with the grid axis at right angles to the pentode section.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 49 mm tall.
References: Data-sheet & private communication. Type 6FL2 was first introduced in 1970.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a
g1(t)
k(t)
h
h
a
g2
g1
k,bp,s



Absolute Maximum Operating Conditions
Tetrode
Vh
Ah
Va
Vs
Vg
mAa
mAs
gm
6.3
0.5
170
170
-2.1
10
2.5
7.5



Absolute Maximum Operating Conditions
Triode
Va
Vg
mAa
ra
gm
200
-7.7
10
5300
3.4
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 06, 2020.
shape:thin.glass.tube construction:all.glass type:triode.beam.tetrode age:post 1975 base:b9a heater:6.3v pins:9 pin:1.a pin:2.g1(t) pin:3.k(t) pin:4.h pin:5.h pin:6.a pin:7.g2 pin:8.g1 pin:9.k.bp.s
