The VT52 was a particularly economical audio power valve (heater power = 1.26W) and was used where very large numbers of valves were required (e.g. in telephone exchanges), consuming power throughout the night when nothing much was happening but it was essential for the whole system to be instantly ready for an emergency.
Their power output capability was small by domestic radio standards but entirely adequate for a telephone line driver. The VT52 was used in very large numbers by the Post Office Telephones system but was also used to a smaller extent in Services equipment. We are uncertain whether it is numbered in the RAF or POVT series but we suspect the latter since it is a late 1930s valve.
As a single ended output stage the power is 2.8W, suitable for audio output in a transceiver. When operated in push pull the pair can deliver 7 W at 1.5% distortion. This could be used for a transmitter modulator for a low power phone transmitter.

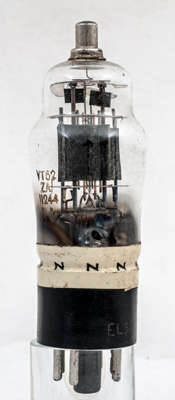

The stores code below the VT52.
The heat radiating fins are attached to the control grid supports. The screen grid is wound on copper supports and the suppressor grid has a very open pitch. The anode has four side wings in the shape of an X.
The classic envelope is 34 mm in diameter and, excluding the IO base pins, is 92 mm tall.
References: Data-sheet & 1043. Type VT52 was first introduced in 1940.
