X41

Sensibly equivalent to:
20A1 CV1194 CV1460 NR84
See also:
Some Important British Valves - Applications of the new valves 1935 - Osram Valves 'Acoustic Aberation' 1 HF Stage Advert

Extras ▼

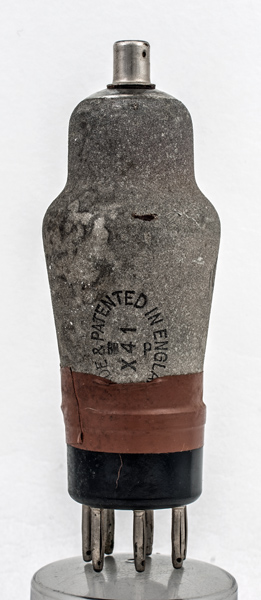

The X41 is a metalised triode hexode frequency changer designed for AC mains receivers. The X31 was designed with a heater for universal mains (AC/DC sets) but is otherwise identical.
The reverse carries the Osram brand name. The wire connecting the metal paint to the base pin can be seen emerging from under the tape.
The classic envelope is 44 mm in diameter and, excluding the B7 base pins, is 113 mm tall.
References: Datasheet & 1043. Type X41 was first introduced in 1935.



Pin Connections
B7
1
2
3
4
5
6
7
tc
a(t)
g1(t),g3
g2,g4
h
h
m,k
a
g1



Absolute Maximum Operating Conditions
Hexode
Vh
Ah
Va
Vs
Vg
gm
4.0
1.2
250
80
-1.5
0.55



Absolute Maximum Operating Conditions
Triode
Va
150
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 01, 2019.
shape:classic construction:pinch type:triode.hexode age:1930.1940 base:b7 heater:4.0v pins:7 pin:1.a(t) pin:2.g1(t).g3 pin:3.g2.g4 pin:4.h pin:5.h pin:6.m.k pin:7.a pin:tc.g1
