D63

Sensibly equivalent to:
6H6GT 6H6G ARDD3 CV554 CV1301 CV1929 EB34
See also:
Osram Valves Octal Base Range Advert featuring KT33C

Extras ▼



The D63 is a double signal diode with separate cathodes. The old service code was ARDD3 and the later CV code was CV1301.
We have another D63 where the metal loaded paint has come away from the glass and the inner structure is visible.

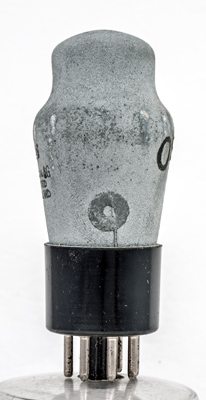

The adhesive ring that holds the connecting wire to the glass so that contact can be made with the zinc screening paint.

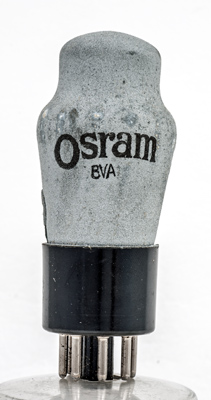

The Osram Logo.
The classic envelope is 35 mm in diameter, and excluding the IO base pins is 75 mm tall.
References: Data-sheet, 1040 & 1043. Type D63 was first introduced in 1937.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a(2)
k(2)
a(1)
-
h
k



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.3
100
2.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated August 30, 2019.
construction:pinch type:double.diode age:1930.1940 base:io heater:6.3v pins:8 pin:1.m pin:2.h pin:3.a pin:4.k pin:5.a pin:6.- pin:7.h pin:8.k
