RX-233A

Sensibly equivalent to:
2C33 CV793

Extras ▼



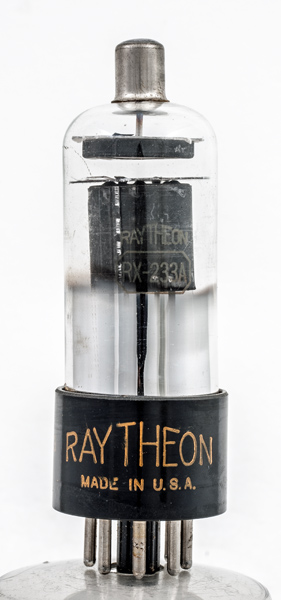

The RX-233A is an argon filled thyratron. The design is of a high voltage and low current switch and with characteristics that remain essentially across a wide temperature range.

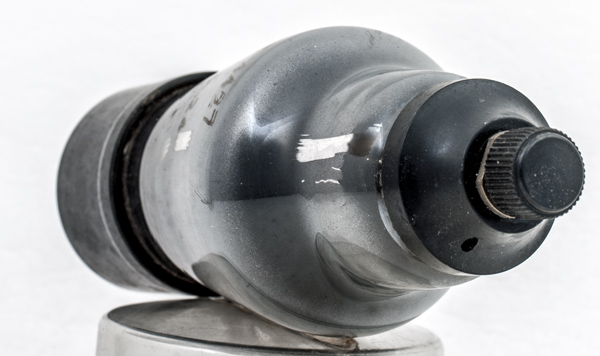

The anode disc is held by the top cap and is separate from the rest of the electrode assembly that is retained by the pinch.

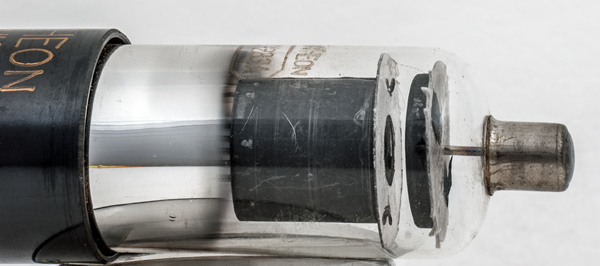

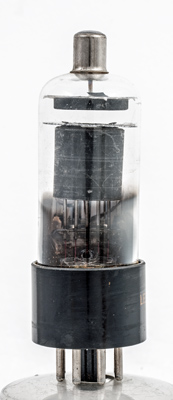

The top mica is an interference fit to the glass tube envelope. The top of the cathode/grid cylinder is an annular mica disc.
The wide glass tube envelope is 29 mm in diameter, and excluding the IO base pins is 86 mm tall.
Reference: Datasheet. Type RX-233A was first introduced in 1943.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
-
f
-
-
g1
-
f
-
a



Absolute Maximum Operating Conditions
Thyratron
Vh
Ah
Va
2.5
2.5
1,500
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 04, 2019.
shape:wide.glass.tube construction:pinch type:thyratron age:1940.1950 base:io heater:2.5v pins:8 pin:1.- pin:2.f pin:3.- pin:4.- pin:5.g1 pin:6.- pin:7.f pin:8.- pin:tc.a
