CV475

Sensibly equivalent to:
5899 CV477 EF71 VX8078

Extras ▼



The CV475 is a Vari-μ sub-miniature pentode with flying leads. The prototype was the special quality 5899 and the normal commercial version is the EF731.

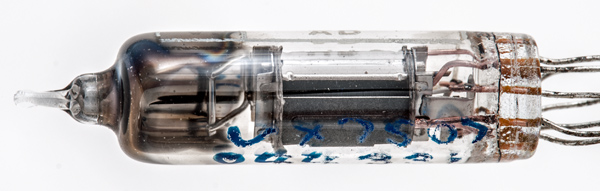

Written on the glass is what appears to be VX7507.

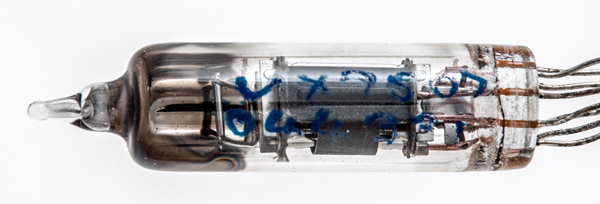

The anode is in two sections with a strap between. A glimpse of the grids is possible in the lower part of this image.

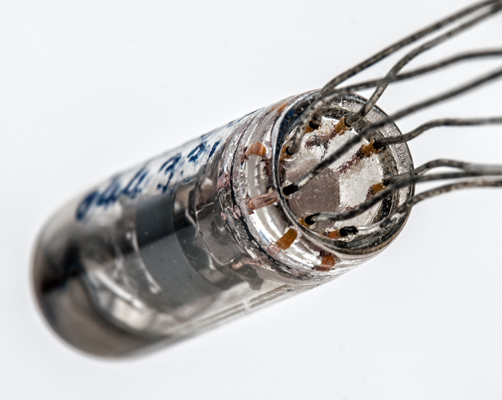

The flying leads sealed in the hard glass base disc.

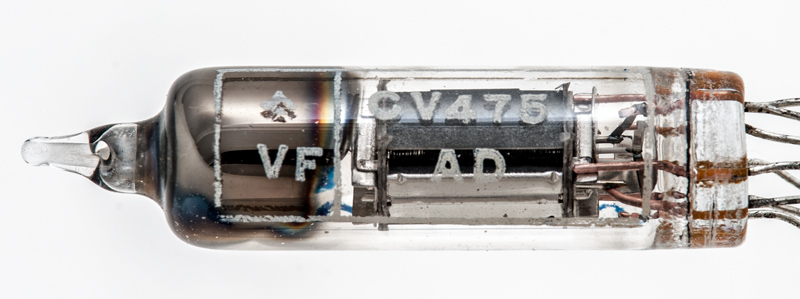

The thin glass tube envelope is 10 mm in diameter, and excluding the B8D/F base wires is 38 mm tall.
Reference: Datasheet.



Pin Connections
B8D & B8D/F
1
2
3
4
5
6
7
8
g1
k,g3
h
k,g3
a
h
g2
k,g3



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
6.3
0.15
450
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 05, 2019.
shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b8d heater:6.3v pin:1.g1 pin:2.k.g3 pin:3.h pin:4.k.g3 pin:5.a pin:6.h pin:7.g2 pin:8.k.g3
