VT105

Sensibly equivalent to:
CV1105 ML6

Extras ▼

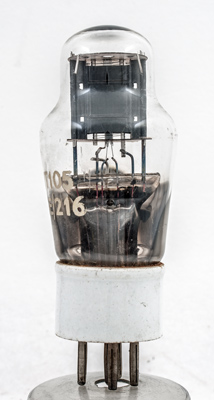

The VT105 is the original Type designation for the M-OV ML6 as specified by the UK government for the RAF. It was used in a transmitter, hence the VT (valve transmitting) in 1941 the unified Common Valve list renamed it the CV1105.
The CV1105 is a triode used as an RF oscillator in medium sized transmitters. G3JLZ reports: the VT105 was used in the master oscillator of transmitter type T1154.
The cathode connects to the pinch with tape and the cathode is a rectangle with rounded ends. The grid extends below the active area of the anode.

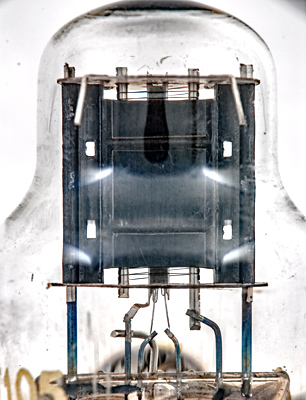

A closer view of the triode.
The front to back dimension is 6 mm.
The classic envelope is 44 mm in diameter and, excluding the B4 base pins, is 98 mm tall.
References: Datasheet & 1043.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
Pout
6.3
0.7
250
-13.5
25
3,700
3.8
0.65W
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 07, 2019.
shape:classic construction:pinch type:triode age:1940.1950 base:b5 heater:6.3v pins:5 pin:1.a pin:2.g1 pin:3.h pin:4.h pin:5.k
