ML6

Sensibly equivalent to:
CV1105 VT105
See also:
Ceramic or Moulded Base Caps? - A Magnetic Digital Storage System - CV1105 short entry

Extras ▼

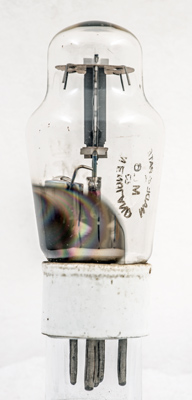

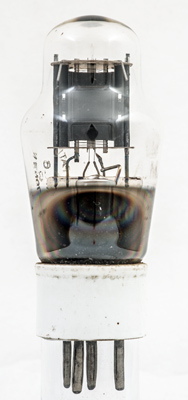

The specimen shown is an ML6C (with ceramic base) of WWII vintage. The ML6 was simply a version of the ML4 adapted for operation in sets powered by vehicle batteries.
ML6s were widely used as RF oscillators in medium-sizes military transmitters.
The classic envelope is 42 mm in diameter and, excluding the B5 base pins, is 100 mm tall.
References: Datasheet & private communication.



Pin Connections
B5
1
2
3
4
5
a
g1
h
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
Pout
6.3
0.7
250
-13.5
25
3,700
3.8
0.65W
Thanks to Frank Philipse for supplying the above PDF datasheet.
