CV100

Sensibly equivalent to:
V1924 V2D33B

Extras ▼

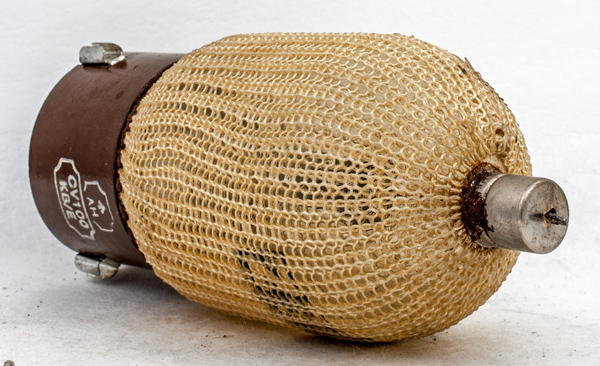

The CV100 basket covered glass valve is designated as a triggered spark gap or trigatron. The varnished basket was provided as a means of containing the glass if the enveloped splintered in use.
Use was as a pulse modulator for a magnetron. The data-sheet gives the performance at 16 kV; a 2μs pulse with a repetition of 400 pulses per second.
A television program about the first UK atomic bomb seemed to show a CV100 used to obtain simultaneous firing of the explosive lenses used to generate implosion. The HV pulse would vapourise the wire in the trigger.
Internally there are two opposing domed surfaces plus the trigger electrode.
See Also CV85.

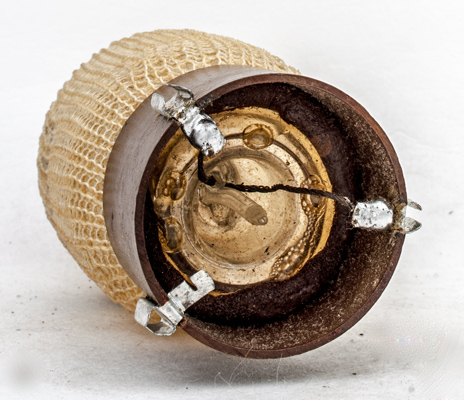

The base. The sockets accept 4 mm plugs.
The cathode top connection.

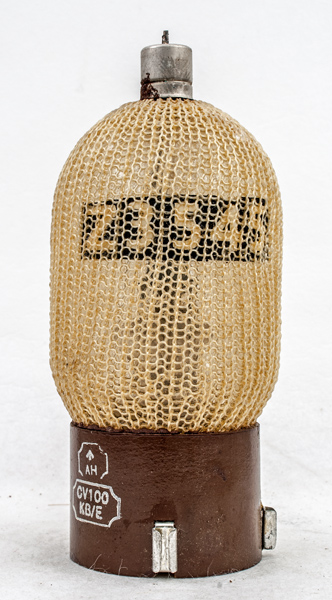

The balloon envelope is 68 mm in diameter and it stands 151 mm tall.
Reference: Datasheet.



Pin Connections
1
2
3
tc
t
a
-
k



Absolute Maximum Operating Conditions
Trigatron
Va
16,000
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated May 26, 2019.
shape:balloon construction:pinch type:cold.cathode age:1940.1950 base: pin:1.t pin:2.a pin:3.- pin:tc.k
