12AT7

Sensibly equivalent to:
6060 B152 B309 CV455 E2157 ECC81
See also:
Valves and their Habits - Pin Compatible Double Triodes - Mufax Chart Recorder Maintenance Manual

Extras ▼



The American Type designation of 12AT7 is equivalent to the European ECC81. This type of double triode was designed for RF use and is of the low impedance type. In the 21st century the 12AT7/ECC81 is much used for audio equipment. It has low noise and a gain between the ECC82 and ECC83.

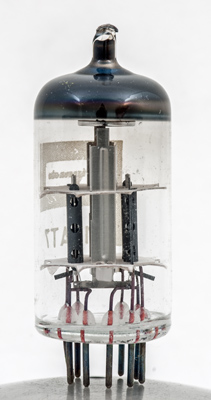

The twin triodes with a central arm supporting the getter holder.

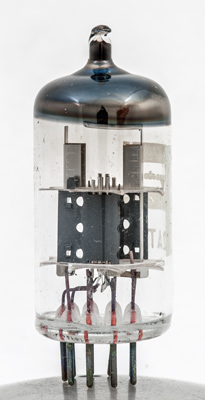

The folded anodes are stitched on one side. Tabs pass through slots in the mica discs to hold the anode in place. The lower tab has the connection welded to it.

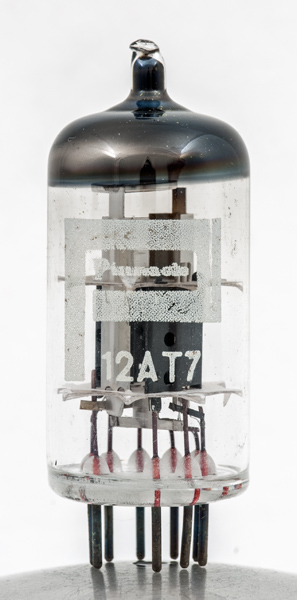

The thin glass tube envelope is 20 mm in diameter and excluding B9A base pins the length is 46 mm.
References: Data-sheet & 1040. Type 12AT7 was first introduced in 1947.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
2.0
10.0
10,000
5.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 17, 2020.
shape:thin.glass.tube construction:all.glass type:double.triode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a pin:2.g1 pin:3.k pin:4.h pin:5.h pin:6.a pin:7.g1 pin:8.k pin:9.hct
