CV1091

Sensibly equivalent to:
63SPT ARP35 EF50 POVT207 VR91 VT-250
See also:
The Famous EF50 of WWII

Extras ▼



The CV1091 is the service version of the EF50. UK government procurement specification valves normally do not identify their manufacturer. This exhibit is in a brand new condition.
The valve is a high impedance pentode and was a workhorse of receivers for radio, television and especially wideband radar IF amplifiers.

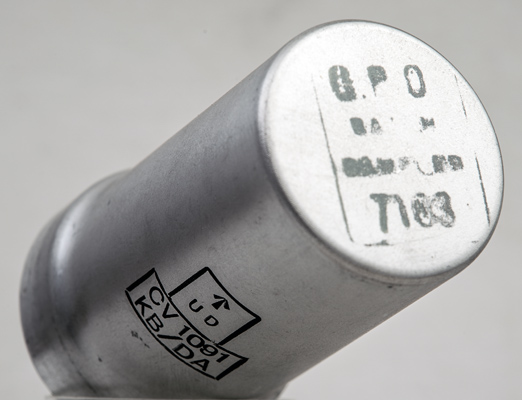

The reason to include this exhibit is the GPO testing stamp on the top.
The wide glass tube envelope is 33 mm in diameter and, excluding the B9G base pins, is 60 mm tall.
References: Data-sheet & 1040.



Pin Connections
B9G
1
2
3
4
5
6
7
8
9
h
g2
a
g3
s
k
g1
s
h



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
250
-2
10
3
1M
6.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
