CV1934

Sensibly equivalent to:
6J5GT
See also:
Metal Striptease

Extras ▼



The CV specification indicates that the CV1934 is the 6J5GT.

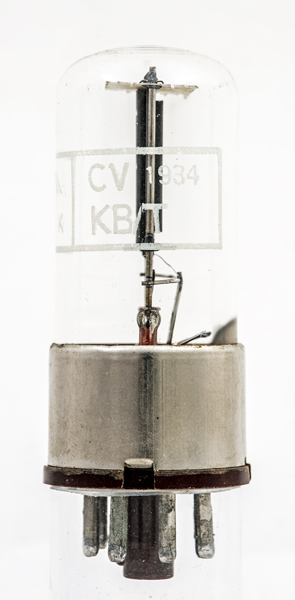

The electrode assembly is sealed to a glass pinch. The envelope is a glass tube the width of the octal base. The anode plates are formed to leave an oval cavity for the grid and cathode.
The electrical characteristics of each half of the 6SN7 match those of the 6J5.

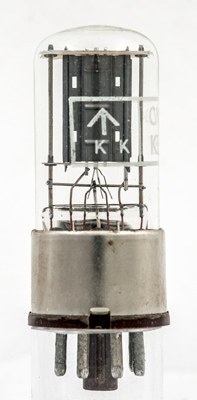

The face view of the anode. The GT version has an internal construction very close to the original metal valve of the mid 1930s.

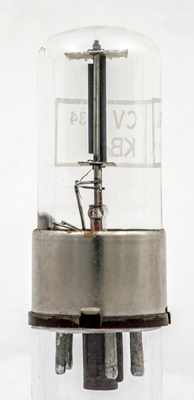

The end view of the anode.

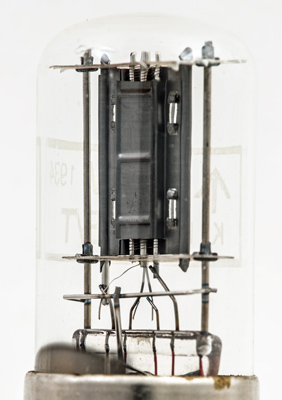

Here the construction can be seen in detail.
The wide glass tube envelope is 29 mm diameter and excluding the IO base pins measures 69 mm tall.
References: Data-sheet & 1040.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
nc
g1
nc
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
6.3
0.3
250
-8
9
7.7K
2.6
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 22, 2021.
