CV1949

Sensibly equivalent to:
6D4 AFX212 EN93

Extras ▼

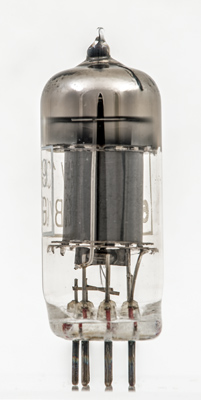

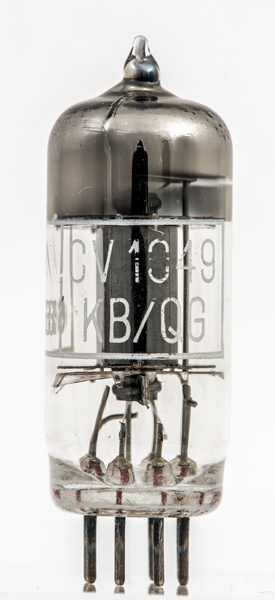

The CV1949 is a miniature thyratron. The prototype was the 6D4.
The box anode prevents seeing within.

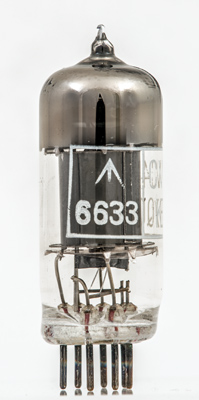

The 6633 is not a secondary Type designation.
The thin glass tube envelope is 17 mm in diameter and, excluding the B7G base pins, is 45 mm tall.
Reference: Data-sheet.



Pin Connections
B7G
1
2
3
4
5
6
7
g1
ic
h
h
k
ic
a



Absolute Maximum Operating Conditions
General Notes
Vh
Ah
Va
mAa
6.3
0.25
250
25
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 21, 2021.
