STV280/40

Sensibly equivalent to:
A2235 AW4 CV110 CV1068 G280/1B VS68
See also:
Marconi Stabilovolt Advert - Marconi Stabilovolt Advert - Marconi Stabilovolt Advert - Stabilised Power Unit - CV110 short entry

Extras ▼

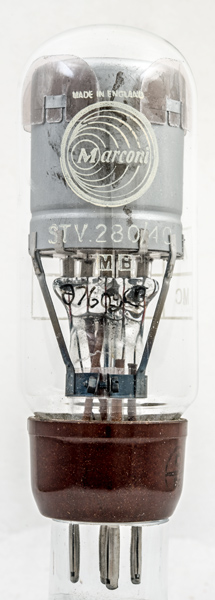

The stv280/40 is a four in one voltage stabiliser that GEC marketed as the Stabilovolt and has a maximum current draw of 40 mA. Also made was the STV280/80 with higher current rating.
It has four anodes, and thus four outputs with gaps of 70 volts each. These output voltages are 70, 140, 210 & 280.
The striking voltage is above 420 Volts and the tube current is 5 - 35 mA. The tube voltage regulation is about a couple of Volts for each 70 Volt step.

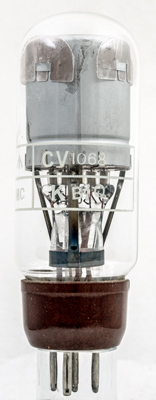

The CV1068 is identical as both designations are printed on the glass.

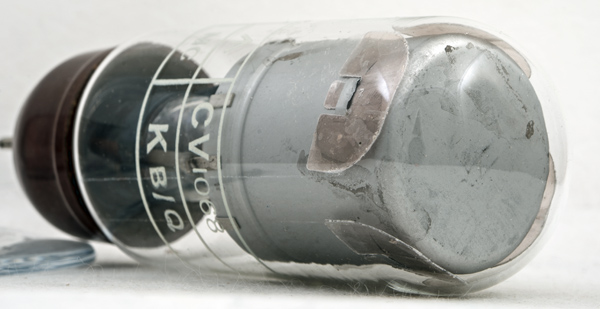

The closed cylinder is held in place within the glass by the four mica sheets.
The wide glass tube envelope is 47 mm in diameter and, excluding the B5 base pins, is 125 mm tall.
References: Data-sheet & R J Sutherland. Type STV280/40 was first introduced in 1936.



Pin Connections
B5
1
2
3
4
5
a(4)
k
a(2)
a(3)
a(1)



Absolute Maximum Operating Conditions
Stabiliser
Va
mAa
420
55
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated June 20, 2021.
