NR81

Sensibly equivalent to:
6K7G CV1941 KTW63

Extras ▼



The Navy Receiving pentode specification NR81 was renamed in 1941 the CV1941.
The valve is a vari-μ RF pentode mainly used as an IF amplifier in superhet receivers. The prototype was the 6K7G.

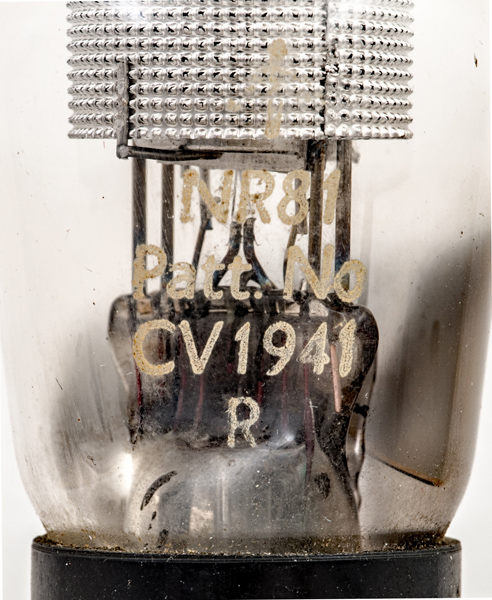

This exhibit has both the CV1941 and the older NR81 designations.
The classic envelope is 37 mm in diameter and, excluding the IO base pins, is 95 mm tall.
Reference: Data-sheet. Type NR81 was first introduced in 1936. See also 1936 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
m
h
a
g2
g3
nc
h
k



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
125
-3
10.5
2.6
0.6M
1.65
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated March 14, 2025.
