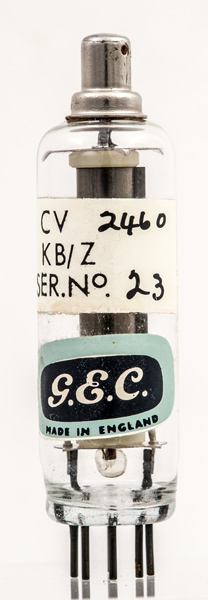

The CV2460 (commercially the SC1/1000) is a corona voltage stabiliser. It is hydrogen filled and designed to work at 1,000 V for currents between 20 - 300 μA.

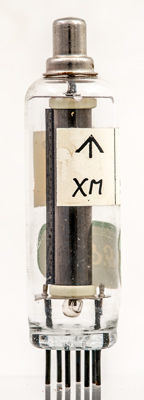

XM and the UK up arrow.

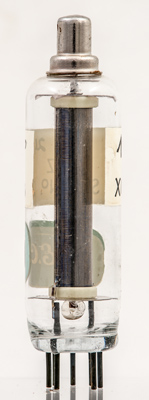

The cathode with ceramic supports and the central rod anode connected to the top cap.The thin glass tube envelope is 18 mm in diameter and, excluding the B7G base pins, is 62 mm tall.References: Adverts and above article. Type CV2460 was first introduced in 1958. See also 1958 adverts. |
