NGT7

Sensibly equivalent to:
21N13 CV1147

Extras ▼

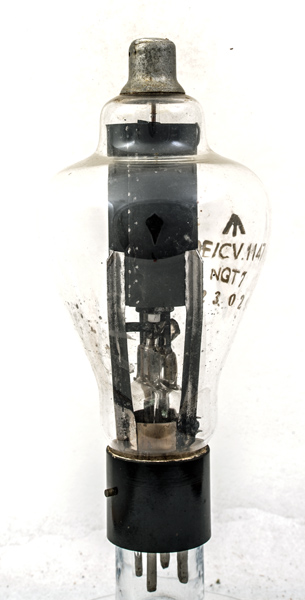

The NGT7 is the UK Navy specification for this mercury vapour thyratron. The design use is for welding and/or motor control.
The cathode is indirectly heated and oxide coated.

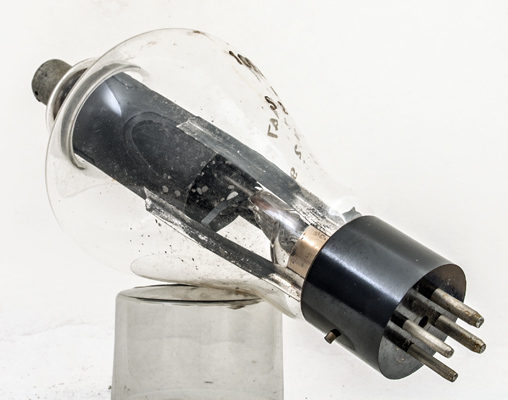

The anode is within the visible outer cylinder that is attached to a collar around the pinch stem.
The balloon envelope is 80 mm in diameter and, excluding the UX4 base pins, is 165 mm tall.
References: Data-sheet.



Pin Connections
UX4
1
2
3
4
tc
h
h,k
g1
h.k
a



Absolute Maximum Operating Conditions
The Thyratron
Vh
Ah
Va
5.0
5.0
1,500
Thanks to Frank Philipse for supplying the above PDF datasheet.
