CV1147Sensibly equivalent¶ to:21N13 BT35 BT5 EST113
|
|
|

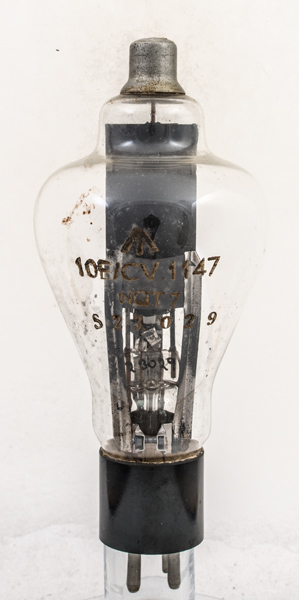

The CV1147 (formally the UK Navy NGT7) is a mercury vapour thyratron. The design use is for welding and/or motor control.The cathode is indirectly heated and oxide coated.

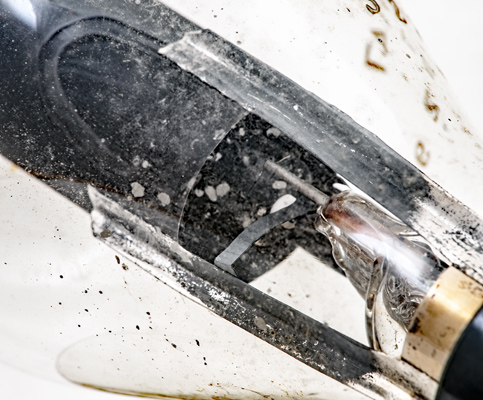

The inner cylinder and outer cylinder are connected by a strap. In the centre of the inner cylinder is a ceramic ring.The balloon envelope is 80 mm in diameter and, excluding the UX4 base pins, is 165 mm tall.References: Data-sheet. |
Pin Connections
| 1 | 2 | 3 | 4 | tc |  h | h,k | g1 | h.k | a |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va |
| 5.0 | 5.0 | 1,500 |
|
