5T4

Sensibly equivalent to:
VT-114

Extras ▼



The 5T4 rectifier is described by RCA as a high voltage full wave rectifier. It would be used for all types of medium power equipment.

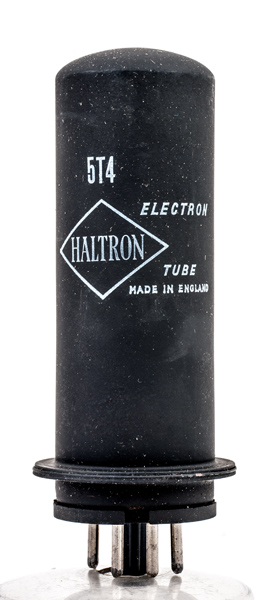

The 5T4 was probably introduced in the mid 1930's as part of the RCA metal valve range. Haltron is a reseller and this valve was made in the UK.

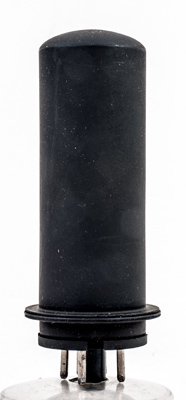

The reverse is plain.
The wide metal tube envelope is 32 mm in diameter and, excluding the IO base pins, is 93 mm tall.
References: Data-sheet, 1043 & 3002. Type 5T4 was first introduced in 1937. See also 1937 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
nc
f
nc
a(2)
nc
a(1)
nc
f,k



Absolute Maximum Operating Conditions
Rectifier
Vh
Ah
Va
mAa
5.0
2.0
450
225
Thanks to Frank Philipse for supplying the above PDF datasheet.
