6SB7Y

Sensibly equivalent to:
6SB7
See also:
Pentagrid Converters

Extras ▼



The 6SB7Y is a heptode designed as a self oscillating mixer for VHF FM radio reception. The heptode is known in America as a Pentagrid converter.
The 6SB7Y was a development of the 1938 6SA7 - also a metal can valve. The valve that replaced the 6SB7Y was an all glass type, the 6BA7.

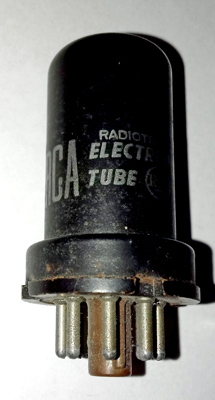

The RCA branding.

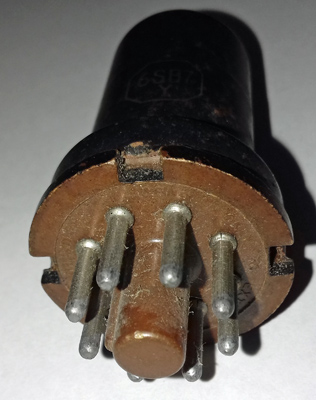

The IO base and pins.
Thanks to Mark Mallison for sending the images.

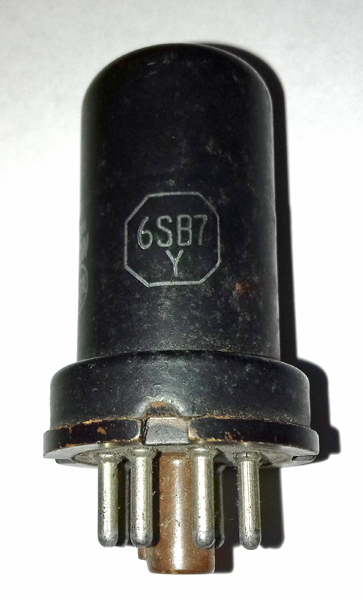

The thin metal tube envelope is 25 mm in diameter and, excluding the IO base pins, is 50 mm tall.
Reference: Datasheet. Type 6SB7Y was first introduced in 1946.



Pin Connections
IO
1
2
3
4
5
6
7
8
m,g5
h
a
g2,g4
g1
k
h
g3



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
6.3
0.3
250
100
-1
3.8
10.0
1M
0.95
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated October 13, 2019.
shape:thin.metal.tube construction:pinch type:heptode age:1940.1950 base:io heater:6.3v pins:8 pin:1.m.g5 pin:2.h pin:3.a pin:4.g2.g4 pin:5.g1 pin:6.k pin:7.h pin:8.g3
