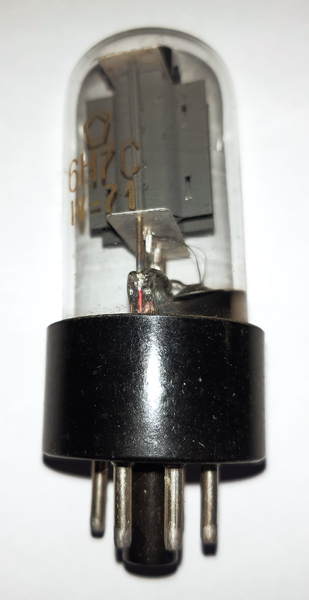

The 6H7C is a Russian implementation of the 6N7GT Class B2 double triode.
Designed to operate in push-pull with zero grid bias, the anode to anode load is given as 8,000 Ω. It is an audio power valve capable of 10 W output.
Type 6A6 is the same valve but on a UX7 base.

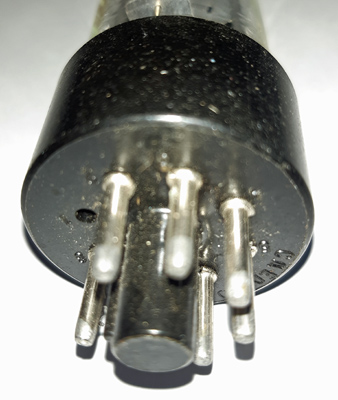

The IO base with pin 1 omitted.

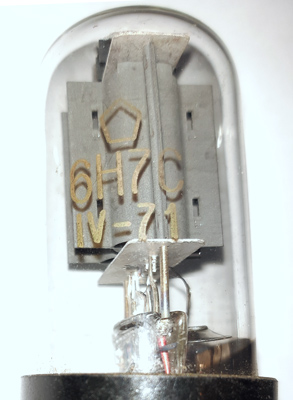

The pentagon symbol was used on Russian valves in the 1940s.
Thanks to Mark Mallison for sending the images.
The wide glass tube envelope is  mm in diameter and excluding the IO base pins, is  mm tall.
Reference: 1043.



Pin Connections
IO
1
2
3
4
5
6
7
8
nc
h
a(2)
g1(2)
g1(1)
a(1)
h
k



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
6.3
0.8
300
0
35.0
