VT-ASensibly equivalent¶ to:See also:
|
|
|

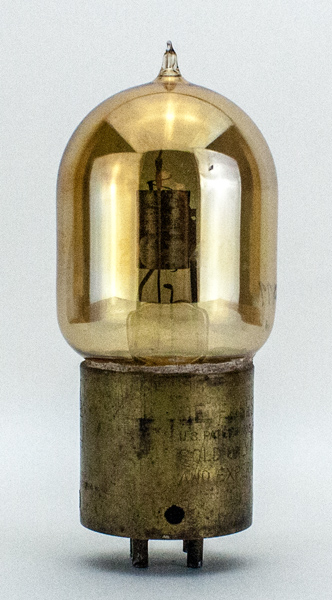

This exhibit is a VT Type A class II with phosphorus gettering. Only a few VT's had the phosphorus gettering.Thanks to Joe Gruber for sending the images.The balloon envelope is 44 mm in diameter and, excluding the UV base pins, is 104 mm tall.Reference: Joe Gruber. Type VT-A was first introduced in 1917. |
Pin Connections
| 1 | 2 | 3 | 4 |  g1 | f | f | a |
|
|
Updated June 13, 2020. shape:balloon construction:pinch type:triode age:pre.1920 base:uv pins:4 pin:1.g1 pin:2.f pin:3.f pin:4.a
|
|
