EA50

Sensibly equivalent to:
2B35 6D1 CV375 CV1092 SD61
See also:
The Famous EF50 of WWII - CV375 short entry

Extras ▼



The EA50 is a miniature signal diode. It was designed to be used in demodulation and other signal rectification. Mullard describe the main area of application as signal detection in television equipment. In the late 1940s television was exclusively VHF based.
This exhibit came complete with B3G base and spring top cap.

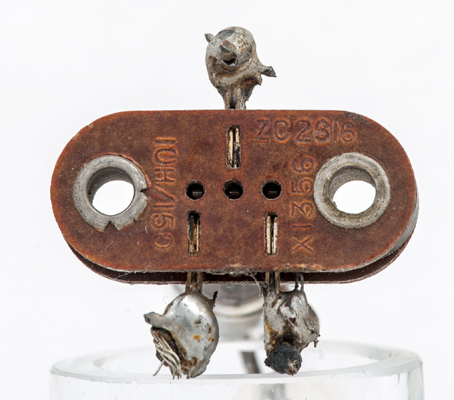

The B3G base.

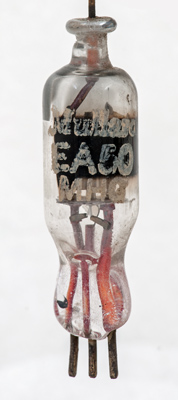

Tiny valve with even smaller diode section within.

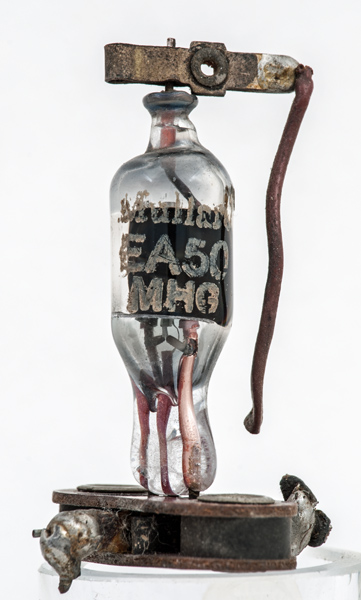

The valve out of the holder.
The thin glass tube envelope is 11 mm in diameter and, including the B3G base pins, is 47 mm long.
References: Data-sheet & 1040. Type EA50 was first introduced in 1939.



Pin Connections
B3G
1
2
3
tc
h
k
h
a



Absolute Maximum Operating Conditions
Diode
Vh
Ah
Va
mAa
6.3
0.15
50
5.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 09, 2020.
shape:thin.glass.tube construction:all.glass type:diode age:1930.1940 base:b3g heater:6.3v pins:3 pin:1.h pin:2.k pin:3.h pin:tc.a
