PL83

Sensibly equivalent to:
15A6 N153 N309
See also:
Valves and their Habits

Extras ▼

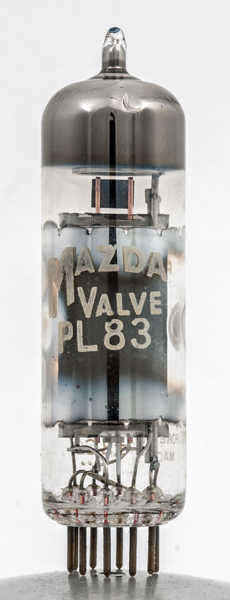

This PL83 was made in the UK by Mazda. It was designed as a sensitive video amplifier valve for television receivers.

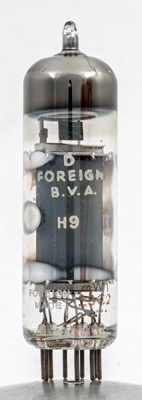

There are screens top and bottom, the control grid has copper supports and a heat radiating fin. The lettering does not give the country of origin just the pejorative term foreign.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 69 mm tall.
References: Data-sheet & 1040. Type PL83 was first introduced in 1951.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
g2
g1
k
h
h
g3
a
s
-



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
15
0.3
170
170
-2.3
36.0
5.0
0.1M
10.0
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated September 10, 2020.
shape:thin.glass.tube construction:all.glass type:pentode age:1950.1960 base:b9a heater:300ma pins:9 pin:1.g2 pin:2.g1 pin:3.k pin:4.h pin:5.h pin:6.g3 pin:7.a pin:8.s pin:9.-
