X147Sensibly equivalent¶ to:
|
|
|

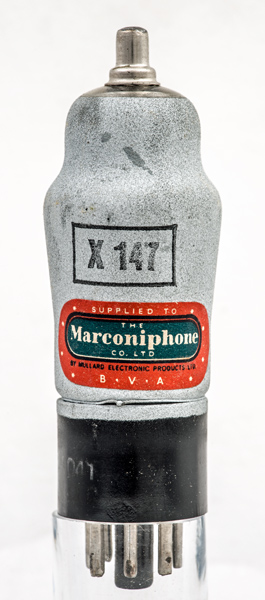

The X147 is an M-OV Type designation and little information can be found for it. It is given as equivalent to both the ECH33 and ECH35. The latter replacing the ECH33 in less than a year.The interesting thing about this exhibit is that it was made for Marconiphone by Mullard and is probably an ECH35 with plain zinc paint.Functionally it is a typical triode hexode frequency changer for broadcast receivers and the Marconiphone was a brand for domestic equipment. For maximum isolation of the signal input and output circuits the hexode control grid is taken to the top cap.![](../pics/act0009a.jpg)

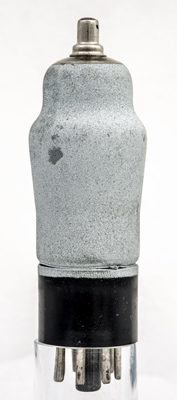

The reverse is plain.The classic envelope is 34 mm in diameter and, excluding the IO base pins, is 91 mm tall.References: Data-sheet, 1040 & 1043. Type X147 was first introduced in 1948. See also 1948 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | tc | ![](../static/key.gif) m | h | a | g2,g4 | g1(t),g3 | a(t) | h | k | g1 |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | Vs | Vg | mAa | mAs | ra | gm | ![](../static/pdflogo.gif)
| 6.3 | 0.3 | 250 | 100 | -2.0 | 3.0 | 3.0 | 1.3M | 0.65 |
|
Absolute Maximum Operating Conditions¶
| Va | mAa | ![](../static/key.gif)
| 100 | 3.3 |
|
