EB34Sensibly equivalent¶ to:
|
|
|

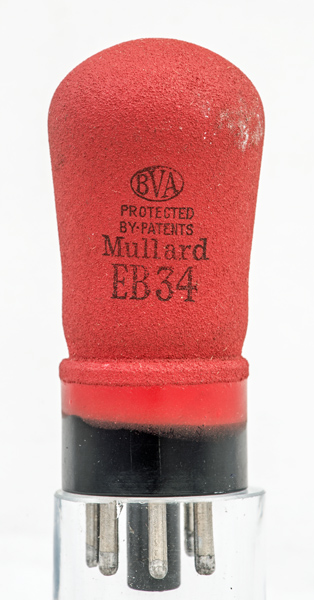

The EB34 is a pair of signal diodes in a single envelope. Each section is internally screened. In our other EB34 example the once present red metallic paint has flaked off and the inner structures can be seen.![](../pics/act0036a.jpg)
Above the base cap is the wire that connects the metal paint coating to pin 1 of the base.The balloon envelope is 30 mm in diameter and, excluding the IO base pins, is 65 mm tall.References: Data-sheet, 1043 & 1040. Type EB34 was first introduced in 1941. See also 1941 adverts. |
Pin Connections
| 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | ![](../static/key.gif) m | h | a(2) | k(2) | a(1) | nc | h | k(1) |
|
|
Absolute Maximum Operating Conditions¶
| Vh | Ah | Va | mAa | ![](../static/pdflogo.gif)
| 6.3 | 0.2 | 140 | 0.8 |
|
