6SU7GTY

Sensibly equivalent to:
6SL7GT

Extras ▼



The 6SU7GTY is a special quality version of the 6SL7GT.
The 6SU7GTY has a low loss phenolic base cap, matched sections but the general operating characteristics of the 6SL7GT.

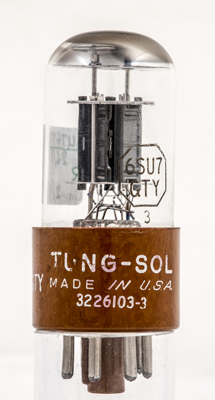

The Tung-Sol name on the base and Made in USA.

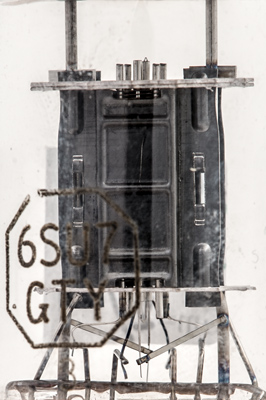

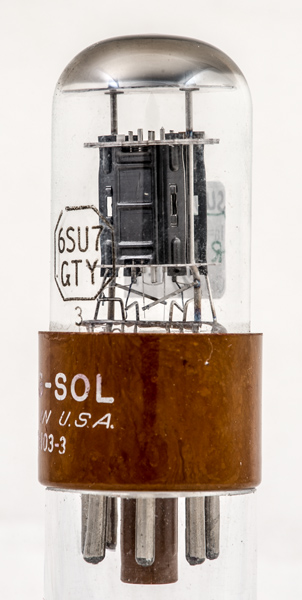

Face voew of one triode.

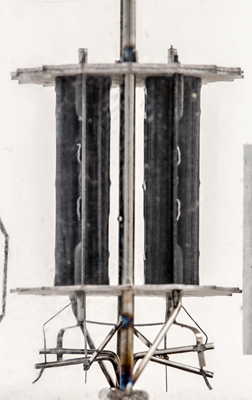

Side view of both units.

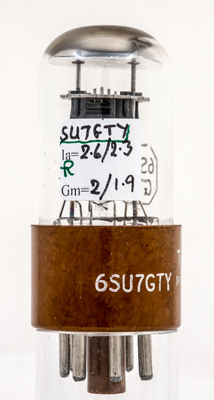

Last test results. The Type designation is repeated on the base cap.
The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 65 mm tall.
References: Data-sheet & Data. Type 6SU7GTY was first introduced in 1945. See also 1945 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
g1(2)
a(2)
k(2)
g1(1)
a(1)
k(1)
h
h



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.3
250
-2
2.3
44,000
1.6
70
Thanks to Frank Philipse for supplying the above PDF datasheet.
