6K5GT

Sensibly equivalent to:
CV861

Extras ▼

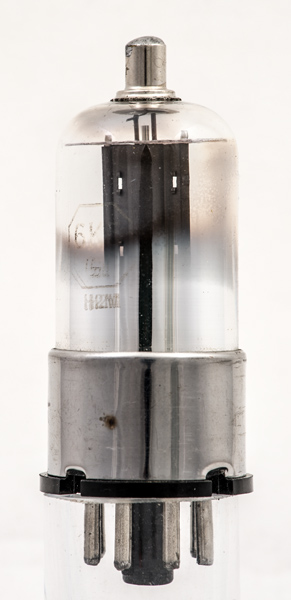

The 6K5GT is an indirectly heated general purpose amplifier triode on an International Octal base.

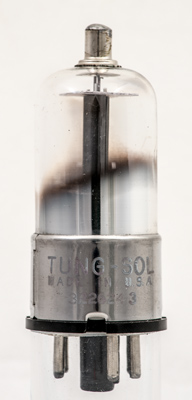

Tung-Sol and Made in USa are printed on the metal base cap skirt.

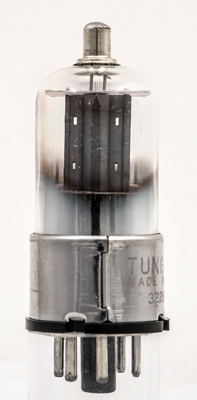

The anode seen full face.
The wide glass tube envelope is 28 mm in diameter and, excluding the IO base pins, is 70 mm tall.
Reference: Data-sheet. Type 6K5GT was first introduced in 1936. See also 1936 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
tc
nc
h
a
nc
nc
nc
h
k
g1



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
ra
gm
μ
6.3
0.3
250
-3.0
1.1
50,000
1.4
70
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 26, 2024.
