12SA7GT

Sensibly equivalent to:
CV538
See also:
Pentagrid Converters

Extras ▼

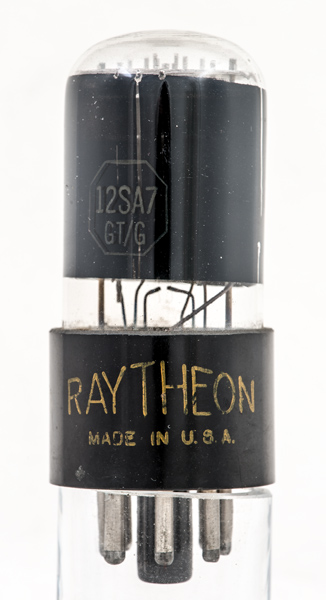

The 12SA7GT is a pentagrid converter for use as a mixer oscillator in superhet receivers. The design is quoted by RCA as optimised to increase stability.

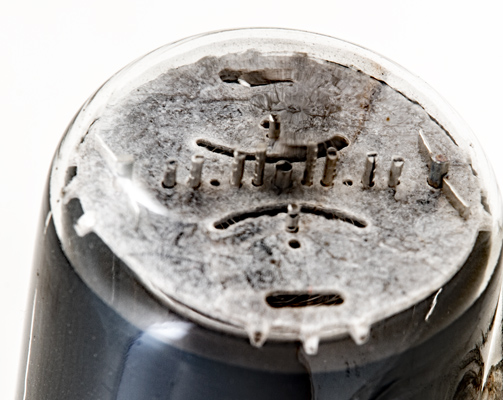

The top mica shows the grid supports and through the slots the wire grids can be seen.
The wide glass tube envelope is 29 mm in diameter, and excluding the IO base pins is 65 mm tall.
References: Data-sheet, 1040, 3002 & 1043. Type 12SA7GT was first introduced in 1939. See also 1939 adverts.



Pin Connections
IO
1
2
3
4
5
6
7
8
g5
h
a
g2,g4
g1
k
h
g3



Absolute Maximum Operating Conditions
Heptode
Vh
Ah
Va
Vs
Vg
mAa
ra
12.6
0.15
300
100
-0
14.0
1.0M
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated November 06, 2024.
