T41

Sensibly equivalent to:
CV1121 CV3723 VGT121
See also:
Valves and their Habits - Mazda TV Advert - CV1121 short entry

Extras ▼



The T41 is a thyratron. The thyratron is a special gas filled valve that at a given grid voltage rapidly moves into full conduction, when the gas ionises, thus acting as a switch. Under the correct circuit conditions this action can be made to generate ramps or pulses.
These valves were used in early radar and television as ramp generators, and in the first computers as pulse generators.
The Mazda Octal base was introduced as a competitor to the American International Octal that it closely resembles.
A typical thyratron TV timebase circuit of the early 1950s.

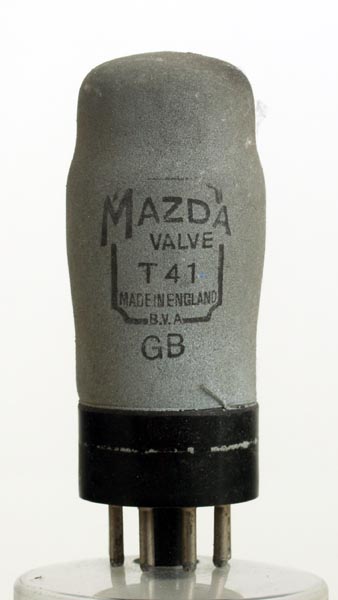

The classic envelope is 30 mm in diameter and, excluding the MO base pins, is 70 mm tall.
References: Datasheet, 1040 & 1043. Type T41 was first introduced in 1940.



Pin Connections
MO
1
2
3
4
5
6
7
8
h
k
a
nc
g1
m
nc
h



Absolute Maximum Operating Conditions
Thyratron
Vh
Ah
Va
mAa
f.max
4.0
1.5
400
500
0.02
Thanks to Frank Philipse for supplying the above PDF datasheet.
