ECC82

Sensibly equivalent to:
12AU7 B329 CV491 E2163 E812CC
See also:
Valves and their Habits - Pin Compatible Double Triodes - Double Triodes in Audio Amplifiers Advert - Push-Pull EL91 Amplifier - Experimental 12AX7 - 12AU7 Audio Amplifier - Noval Based Valves for Audio Amplifiers Advert - A 600 mW audio Amplifier

Extras ▼

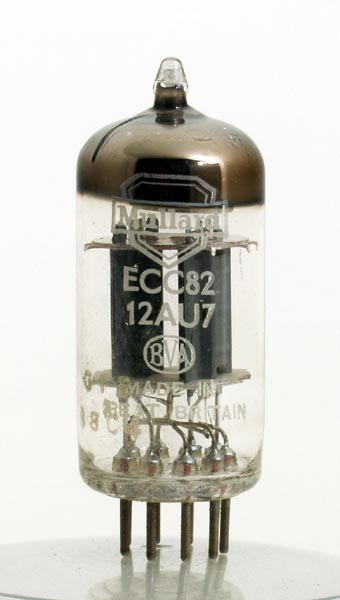

Designed as general purpose triodes, two independent valves exist in the ECC82 envelope. A special quality version was also produced, the E82CC. Designed for differential amplifiers in industrial equipment, the anti microphonic and matched pair version E182CC was also made.
An amplification factor of 17 is quoted, and the ECC82 is virtually a pair of EC90 triodes in a single envelope but not designed for RF use.
We were surprised at the very low CV number, suggesting availability at the start of WWII even though the B9A base is post war in the UK.
The thin glass tube envelope is 20 mm in diameter and, excluding the B9A base pins, is 50 mm tall.
References: Datasheet & 1040. Type ECC82 was first introduced in 1951.



Pin Connections
B9A
1
2
3
4
5
6
7
8
9
a(2)
g1(2)
k(2)
h
h
a(1)
g1(1)
k(1)
hct



Absolute Maximum Operating Conditions
Triode
Vh
Ah
Va
Vg
mAa
gm
6.3
0.3
250
-8.5
10.5
2.2
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated July 24, 2018.
shape:thin.glass.tube construction:all.glass type:double.triode age:1950.1960 base:b9a heater:6.3v pins:9 pin:1.a(2) pin:2.g1(2) pin:3.k(2) pin:4.h pin:5.h pin:6.a(1) pin:7.g1(1) pin:8.k(1) pin:9.hct
