PFL200

Sensibly equivalent to:
16Y9
See also:
Valves and their Habits - PFL200 - Double Pentode for Dual Standard Receivers

Extras ▼

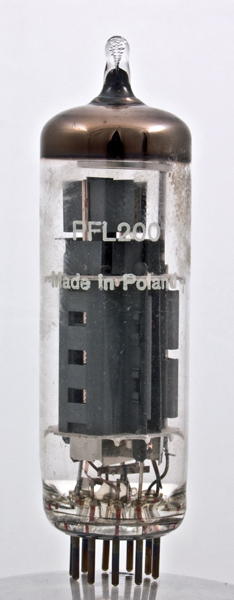

The PFL200 valve contains two separate pentode valves in one package. For consumer electronics products cost reduction was vital, and the more functionality within each envelope the better.
This valve carries no makers name just the made in Poland line.
The first (the 'F' pentode) is a low power low voltage type with all three grids visible, and the second is a power pentode, probably a beam tetrode from visual observations. To accommodate a pair of pentodes Mullard, the original designers, introduced a 10 pin base.
One particular function of this valve was within colour television receivers. One pentode would drive the CRT cathode, while the other would be employed as part of the colour difference circuitry. Each of the three guns of the shadow mask tube would use one of these valves.
The PFL200 also found service in monochrome receivers. The output pentode was used for the video amplifier to drive the picture tube cathode, while the the amplifier pentode was employed as a sync separator.

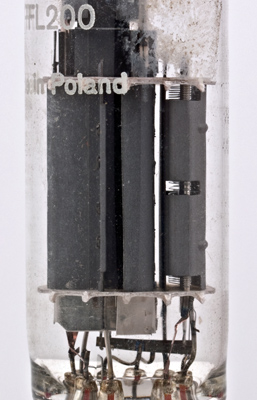

The output pentode is in the foreground. The view is looking at the grid support rod.
The amplifier pentode is the smaller of the valve sections and is set at 90 degrees to the power valve.

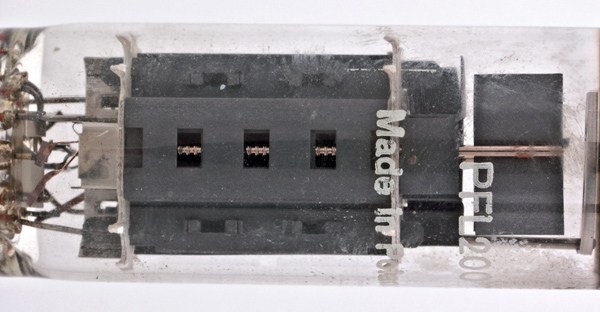

The amplifier pentode on the right has the tree wire grids visible through the gap in the anode.
The thin glass tube envelope is 21 mm in diameter and, excluding the B10B base pins, is 69 mm tall.
References: Datasheet & 1040. Type PFL200 was first introduced in 1964.



Pin Connections
B10B
1
2
3
4
5
6
7
8
9
10
g1(2)
k,g3(2)
g2(2)
a(2)
h
h
k,g3,s(1)
g1(1)
g2(1)
a(1)



Absolute Maximum Operating Conditions
Pentode
Vh
Ah
Va
Vs
Vg
mAa
mAs
ra
gm
16.5
0.3
170
170
-2.6
30
6.5
40k
21



Absolute Maximum Operating Conditions
Pentode
Va
Vs
Vg
mAa
mAs
ra
gm
150
150
-2.3
10
3
160k
8.5
Thanks to Frank Philipse for supplying the above PDF datasheet.
Updated April 14, 2014.
